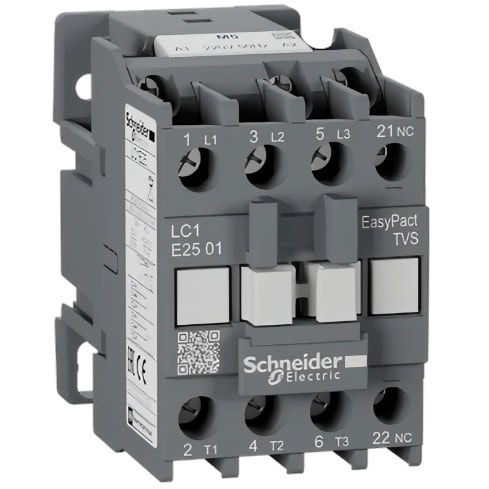

Easypact TVS Contactor 3P(3 No) - LC1E2501M5
˂
˃
Easypact TVS Contactor 3P(3 No) - LC1E2501M5
Price:
₦18,050
Share:
Product Description
| range | EasyPact |
|---|---|
| product name | EasyPact TVS |
| product or component type | Contactor |
| device short name | LC1E |
| contactor application | Motor control Resistive load |
| utilisation category | AC-3 AC-1 |
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 25 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 36 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| motor power kW | 5.5 kW at 220...230 V AC 50/60 Hz 11 kW at 380...400 V 11 kW at 415 V 11 kW at 440 V 15 kW at 500 V 15 kW at 660...690 V |
| control circuit type | AC at 50 Hz |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| height | 74 mm |
| width | 45 mm |
| depth | 85 mm |
| net weight | 0.36 kg |
| colour | Grey (RAL 7011) |
| auxiliary contact composition | 1 NC |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| overvoltage category | III |
| [Ith] conventional free air thermal current | 36 A (at 55 °C) |
| Irms rated making capacity | 250 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| rated breaking capacity | 200 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 240 A 40 °C - 10 s for power circuit 120 A 40 °C - 60 s for power circuit 50 A 40 °C - 600 s for power circuit |
| associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 40 A gG at <= 690 V coordination type 1 for power circuit |
| average impedance | 2.5 mOhm - Ith 36 A 50 Hz for power circuit |
| power dissipation per pole | 1.6 W AC-1 2.5 W AC-3 |
| control circuit voltage limits | Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C) Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C) |
| operating time | 12...22 ms on closing 4...19 ms on opening |
| mechanical durability | 1000000 cycles |
| maximum operating rate | 1800 cyc/h 60 °C |
| inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 2…3 W for control circuit |
| minimum switching current | 5 mA for control circuit |
| minimum switching voltage | 17 V for control circuit |
| non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| insulation resistance | > 10 MOhm for control circuit |
| electrical durability | 1200000 cycles AC-3 350000 cycles AC-1 |
| mounting support | DIN rail Plate |
| connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Recommended tightening torque | Control circuit: 1.2 N.m Power circuit: 1.5 N.m |
| Max tightening torque | Control circuit: 1.4 N.m Power circuit: 1.7 N.m |
