Ts1.2 Time Relay Controller Relay Module Relay-operated

Features:

8 trigger modes can be set, to achieve trigger start, trigger restart, signal maintenance running, trigger reset (watchdog function), force stop and other functions.

Timing Range: 0.1 seconds~999 minutes adjustable.(three range adjusting among 0.1~99.9sec., 1~999sec., and 1~999min.)

Relay can be closed first and then opened, it can be also opened first and then closed. cycles 0~9999 times. ("0" means infinite cycles).

The pre-set parameters can be saved after off.

A set of conversion (normally opened and normally closed).



Specifications:

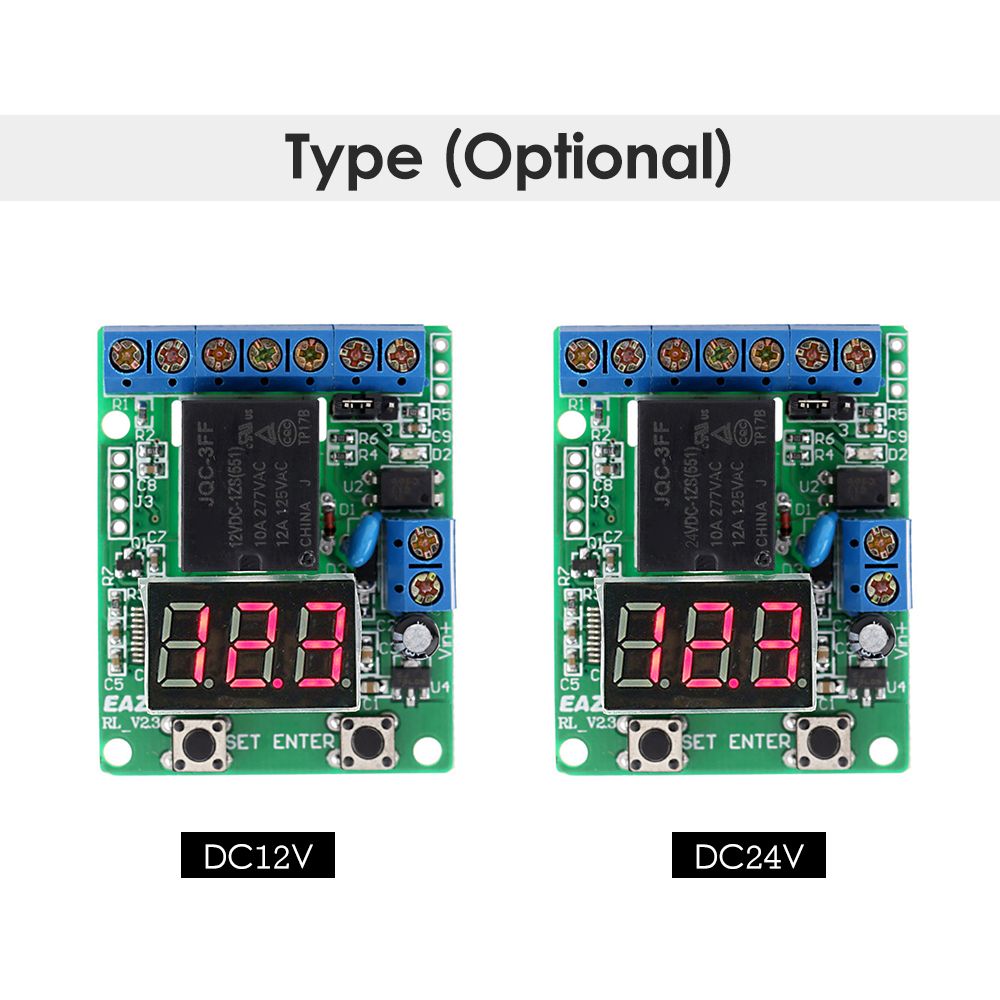

Type: DC12V/ DC24V (Optional)

Material:

Operating : DC12V(10~18V), or DC24V(18~28V)

Contact Load: 10A/277V AC or 10A/30V

Contact Resistance: ≤ 100mΩ (1A 6VDC)

Electricity Durability: >100,000 (10A-250VAC)

Mechanical Durability: 10 millions

Operating Temperature: -40~85℃

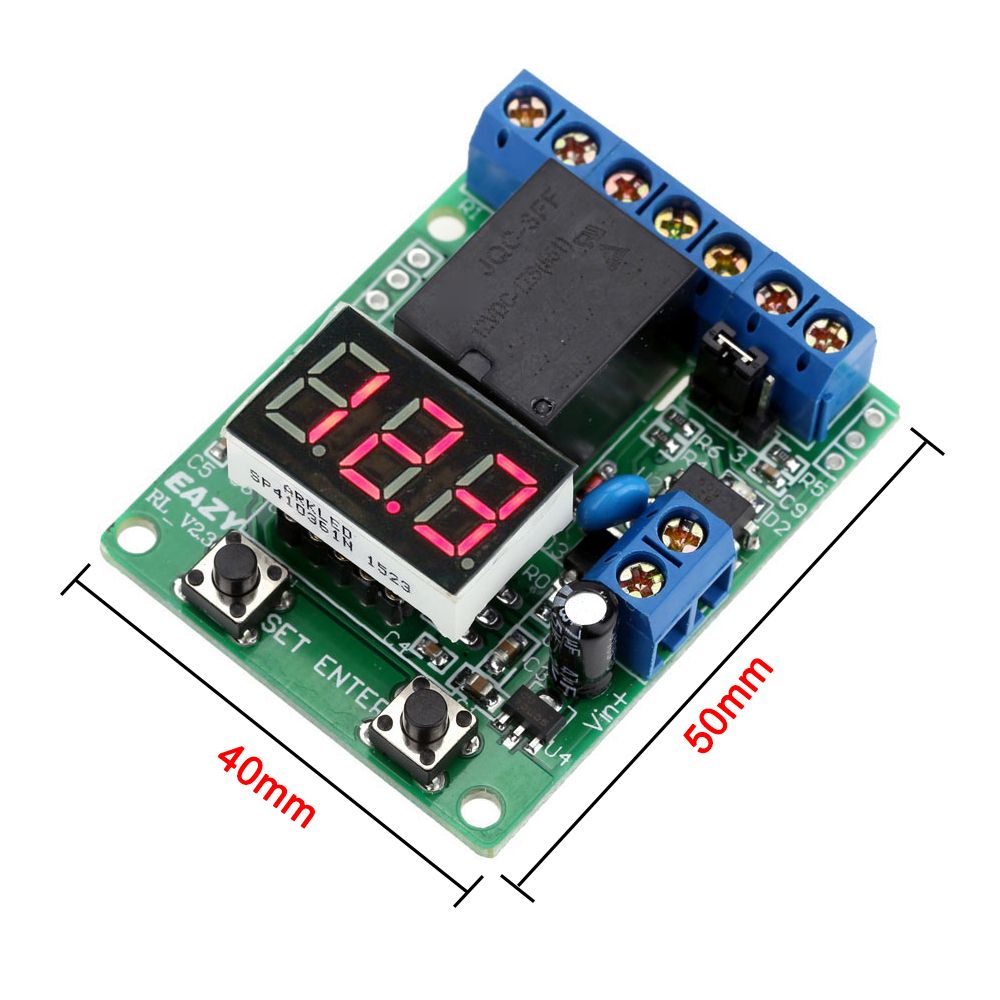

Item Size: 50 * 40 * 20mm / 1.97 * 1.57 * 0.79in

Item Weight: 27g / 0.95oz

Package Weight: 30g / 1.06oz

Package Size: 5 * 4 * 2cm / 1.97 * 1.57 * 0.79in



Packing List:

1 * Module

Key Features

8 trigger modes can be set, to achieve trigger start, trigger restart, signal maintenance running, trigger reset (watchdog function), force stop and other functions.
Timing Range: 0.1 seconds~999 minutes adjustable.(three range adjusting among 0.1~99.9sec., 1~999sec., and 1~999min.)
Relay can be closed first and then opened, it can be also opened first and then closed. cycles 0~9999 times. ("0" means infinite cycles).
The pre-set parameters can be saved after off.
A set of conversion (normally opened and normally closed).
8 trigger modes can be set, to achieve trigger start, trigger restart, signal maintenance running, trigger reset (watchdog function), force stop and other functions.

What's In the Box

1 x Module
