AVD06 Dual Mode AC Voltage Detector 12V/48V～1000V

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.



Features:

Compact and lightweight: easy to use and carry.

Dual mode: this voltage detector features manual / auto mode, it is convenient to detect and indicate the existence of AC voltage in auto mode, or applied to more occasions in manual mode.

Freely adjustable sensitivity: the sensitivity of this detector can be adjusted to any value according to your needs. When adjusting to low sensitivity, it can more accurately distinguish the specific situation in complex lines.

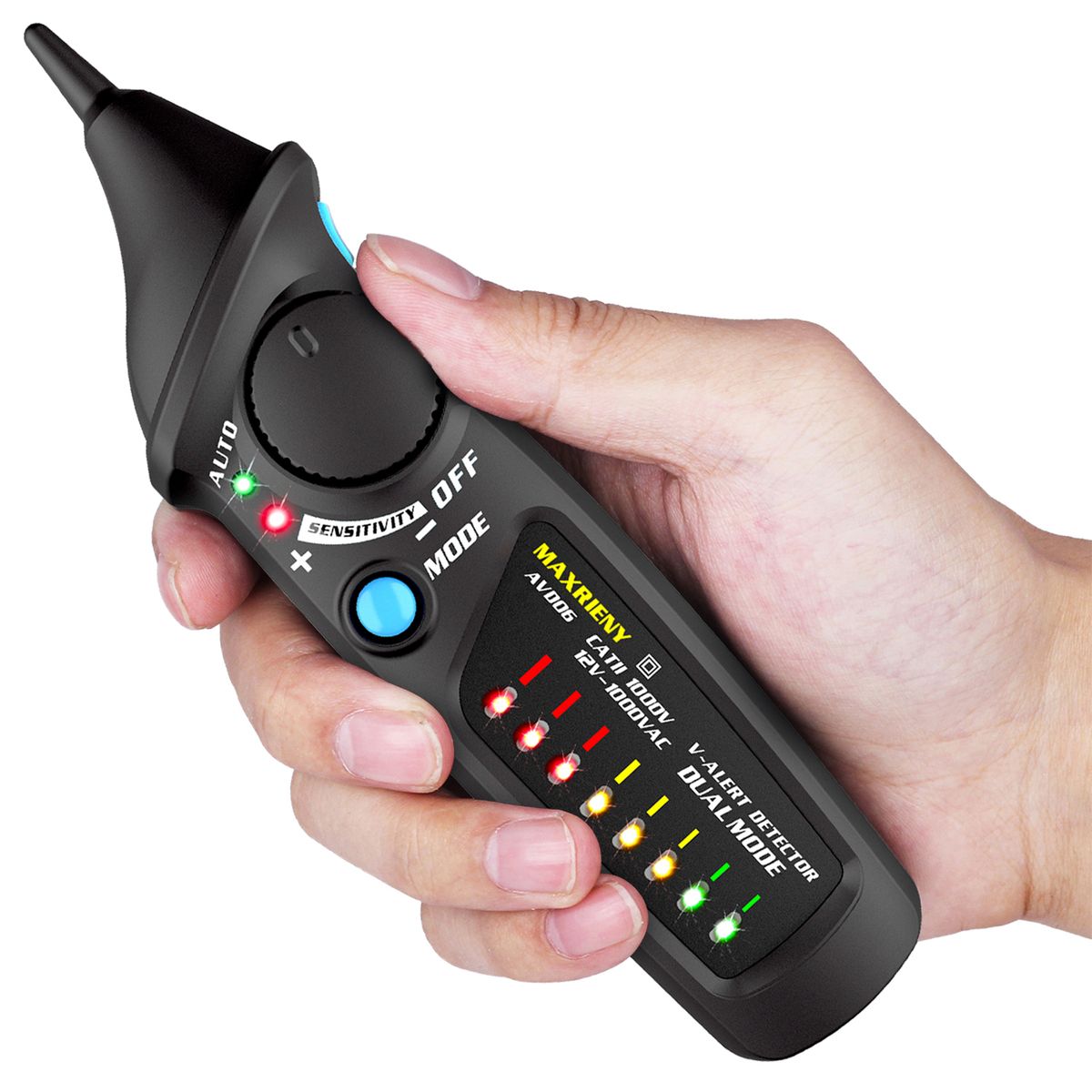

8 LED indicators in 3 colors: this detector can intelligently judge the strength of detected voltage by automatically lighting different color and quantity LED indicators.

Live / Neutral wire distinguish: safe to distinguish live / neutral wire by comparing the detected voltage strength.

Insulation protection probe: the detector probe adopts ABS insulation design, which can protects you from electric shock while improving the sensitivity.

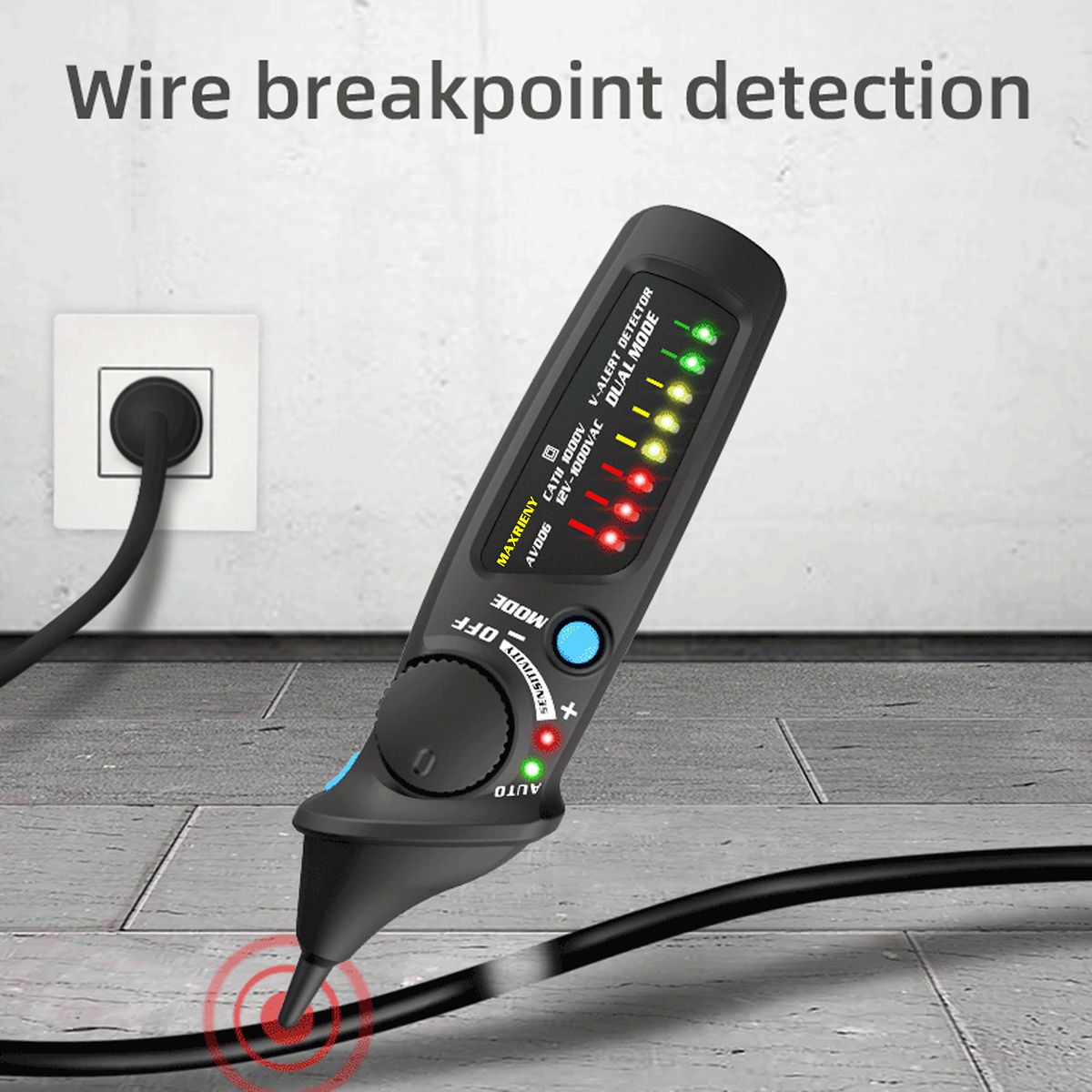

Breakpoint locate: safe and to locate the breakpoint of the live wire by measuring the change in voltage strength.

Flashlight function: flashlight design lets you test efficiently and comfortably.



Specifications:

Material: ABS

Color: black

Display type: analog only

Mode type: auto / manual

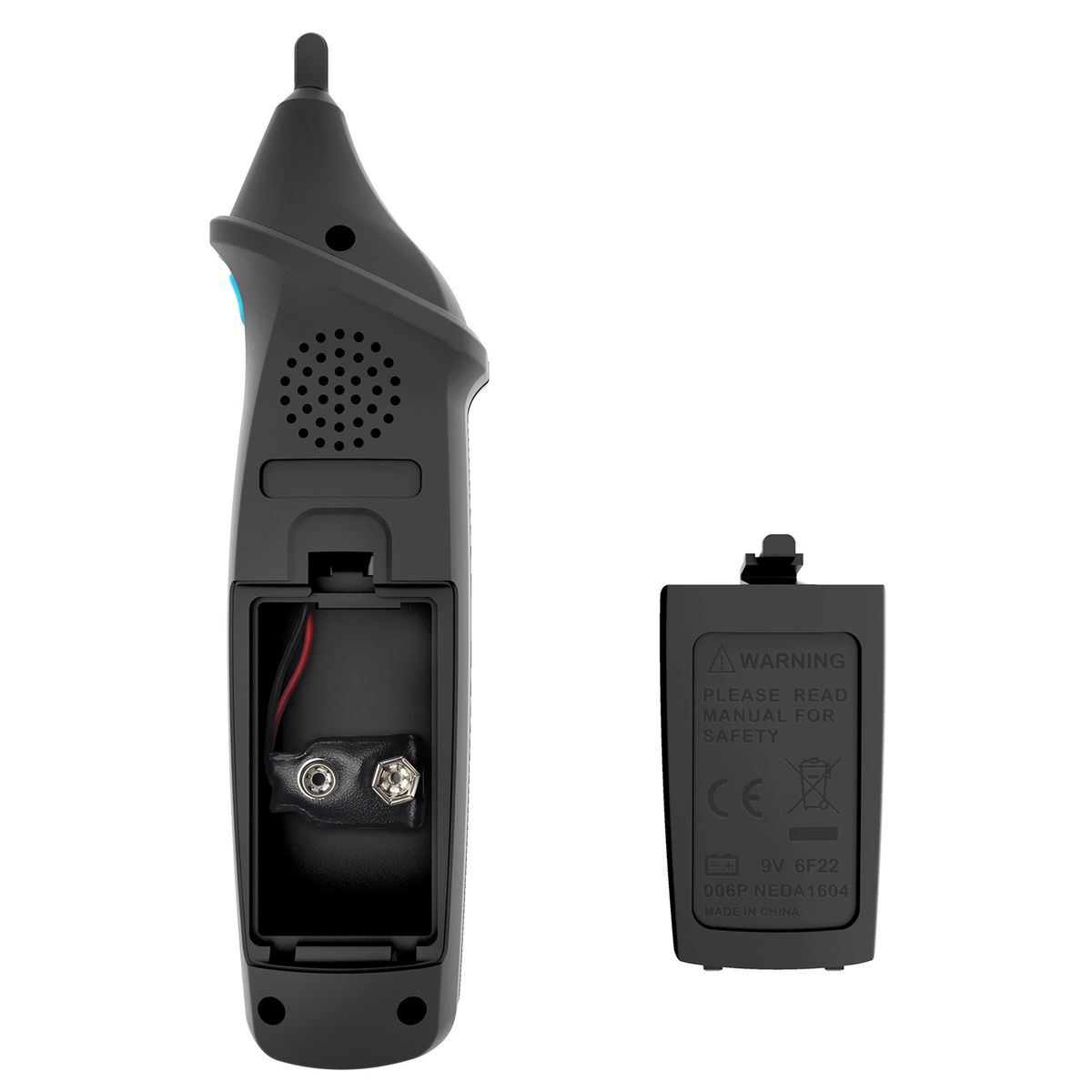

Battery: 1 * 9V 6F22 battery (not included)

Indicator light: green (low), yellow (mid), red (high)

Alarm type: sound and LED light

Auto off: Yes, when no operation of 5 minutes and no detection of AC voltage

Flashlight color: white

Manual mode voltage range: 12V~1000V

Auto mode voltage range: 48V~1000V

Frequency: 50Hz/60Hz

Low battery indication: Yes

Operating temperature: 0~40℃

Item size: 174 * 47 * 35mm / 6.9 * 1.9 * 1.4in

Item weight: 68g / 2.4ounce

Package size: 200 * 55 * 40mm / 7.9 * 2.2 * 1.6in

Package weight: 101g / 3.6ounce



Packing List:

1 * Voltage Detector

1 * User Manual

Key Features

Compact and lightweight: easy to use and carry.
Dual mode: this voltage detector features manual / auto mode, it is convenient to detect and indicate the existence of AC voltage in auto mode, or applied to more occasions in manual mode.
Freely adjustable sensitivity: the sensitivity of this detector can be adjusted to any value according to your needs. When adjusting to low sensitivity, it can more accurately distinguish the specific situation in complex lines.
8 LED indicators in 3 colors: this detector can intelligently judge the strength of detected voltage by automatically lighting different color and quantity LED indicators.
Live / Neutral wire distinguish: safe to distinguish live / neutral wire by comparing the detected voltage strength.
Insulation protection probe: the detector probe adopts ABS insulation design, which can protects you from electric shock while improving the sensitivity.

What's In the Box

1 x Voltage Detector,1 x User Manual
