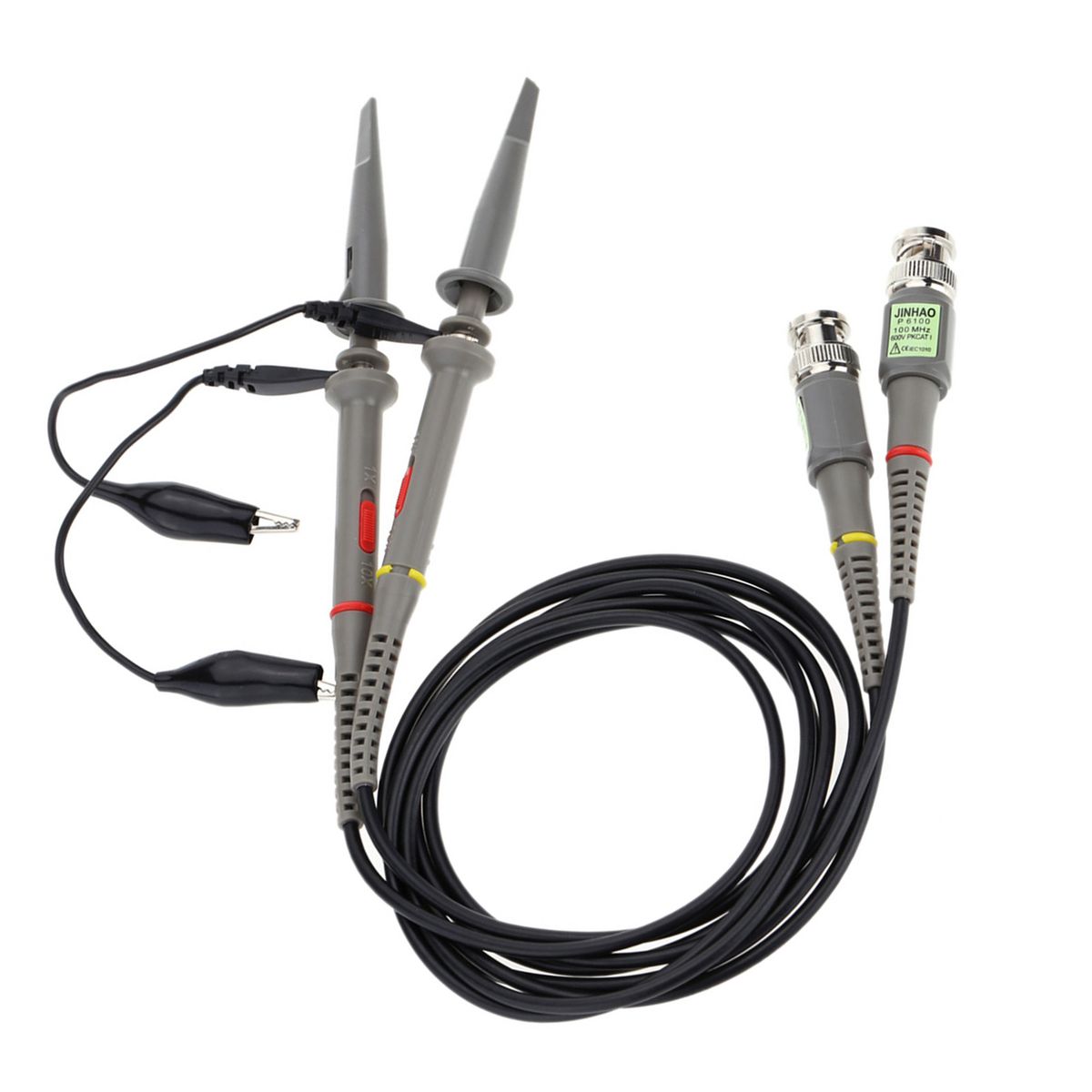

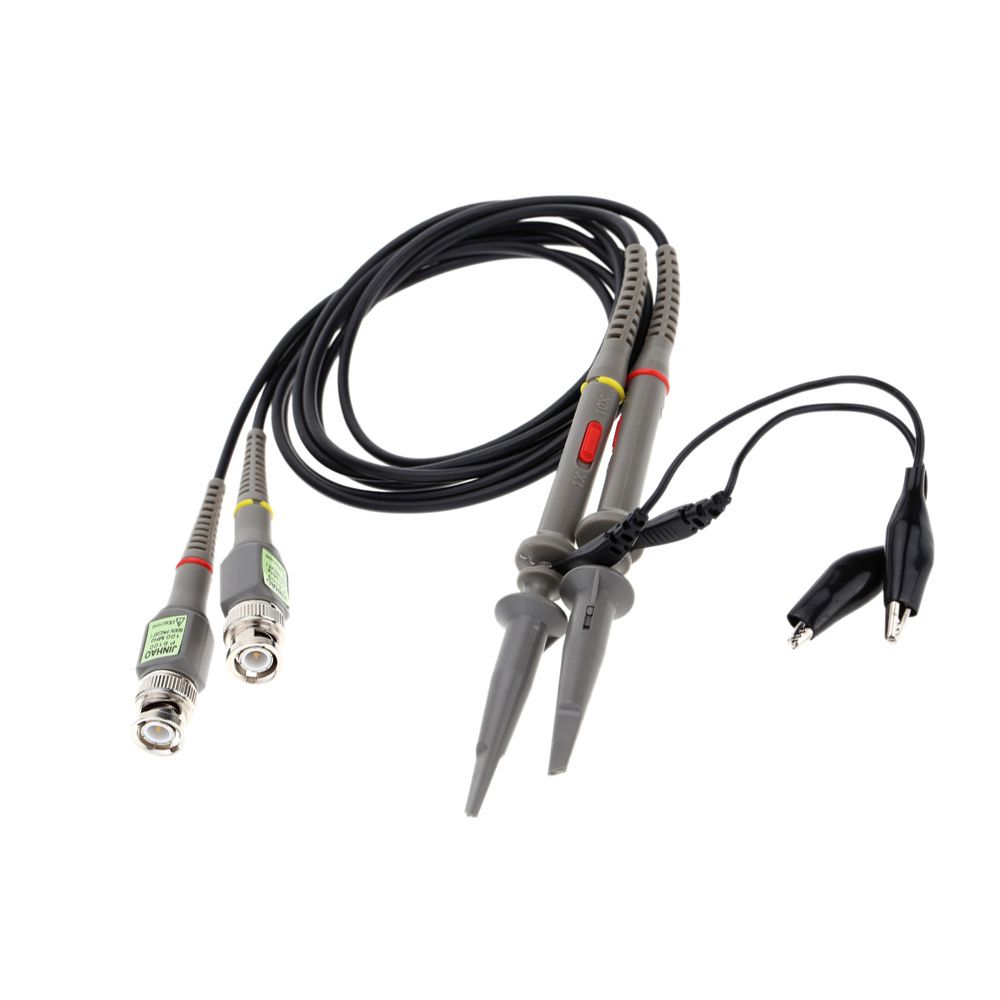

P6100 2Pcs High Precision Oscilloscope Probe 1X 10X 100MHz

This oscilloscope with several useful accessories is designed to make measurement process simple. It has compact size and stable performance.

Features:

Compact size, several functions combined in one, this probe is convenient to use.

Adjustable probe attenuation, you can choose 1X or 10X by sliding the switch.

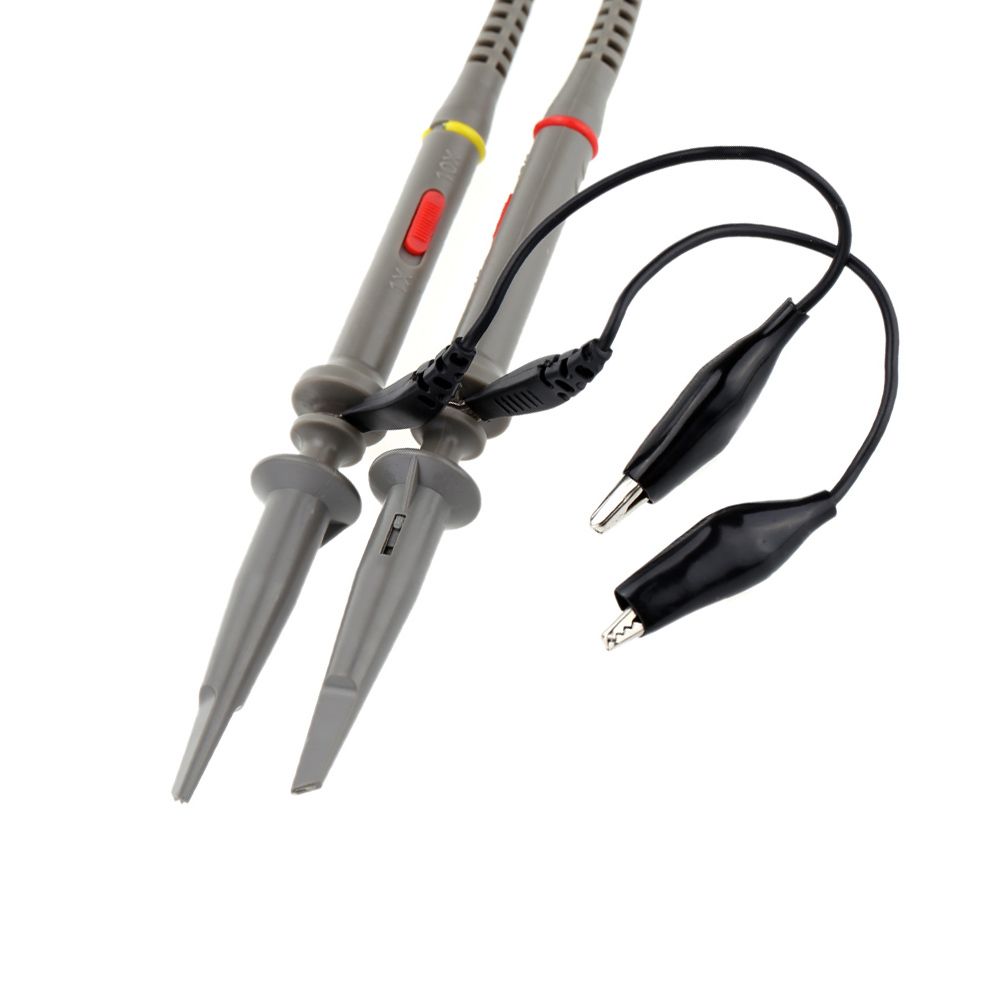

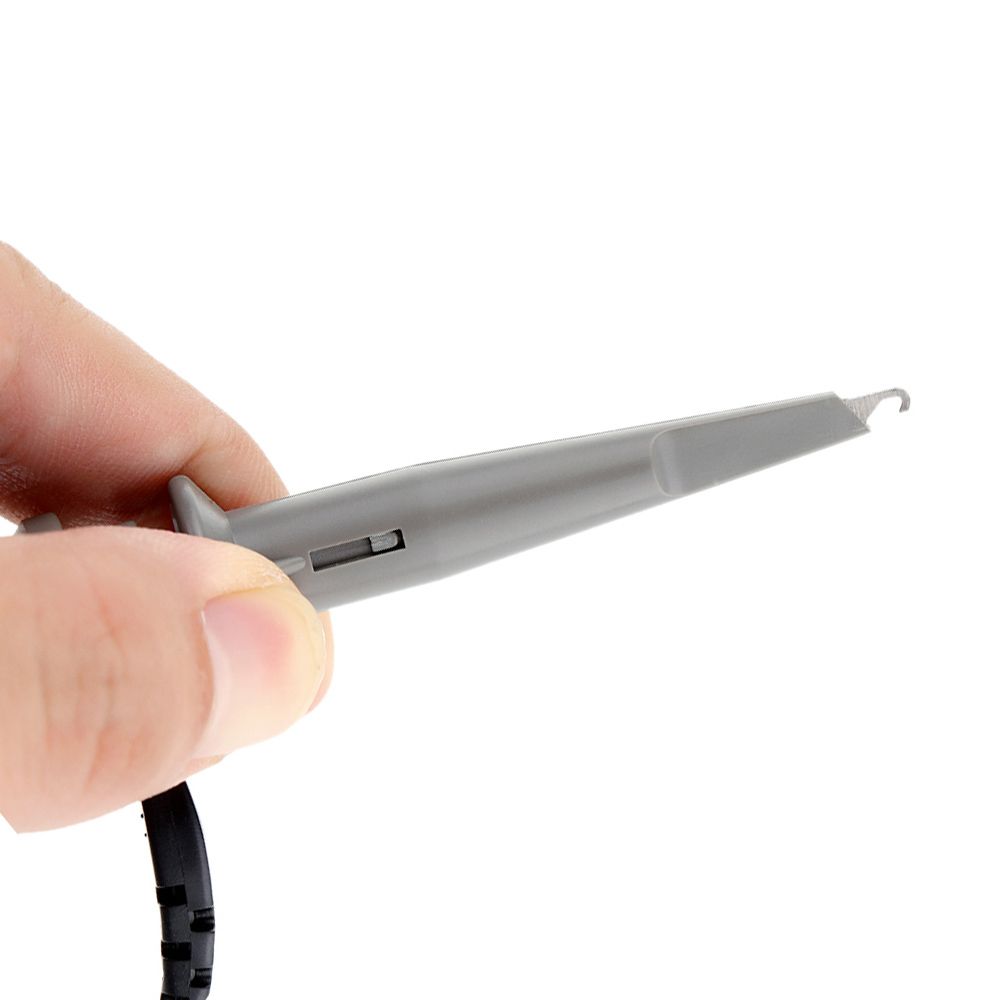

Detachable hook tip, the hook is well protected by the plastic case.

Locating sleeves ensure the stability and reliability of the tip exposed to the test point.

Marker rings in different colors help to identify different channels.

Great choice for oscilloscope probe.

Specifications:

Band Width: 100MHz

Rise Time: 3.5ns

Attenuation Ratio: 1X / 10X

Input Resistance: (1M Omega;/10M Omega;) plusmn;2%

Input Capacitance: 1X: 70pF-120pF 10X: 13-17pF

Maximum Input: 1X: 200 Working Voltage(Vp-p) 10: 600 Working Voltage(Vp-p)

Compensation Range: 10-35pF

Operating Temperature: 0-50 deg;C

Operating Humidity: 0-80%RH

Length: 14cm

Weight(2pc): 98g / 3.5oz

Package Size: 22 * 14 * 1cm / 8.7 * 5.5 * 0.4in

Package Weight: 127g / 4.5oz

Package List:

1 * Pair of Test Probes

1 * Bag of Accessories

1 * User Manual
