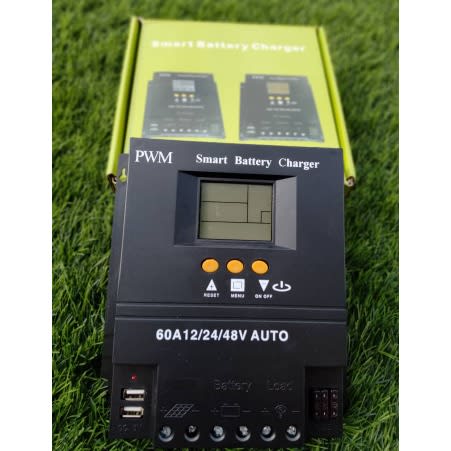

60a 12/24/36/48v Pwm Solar Charge Controller

PWM Solar Charger Controller - 60Amps
Input Voltage 12/24/36V/48V
Visual LCD graphic symbol
Brief key operation
Grade auto switch of system voltage
Intelligent PWM Charging Mode
Auto temperature compensation
Adjustable charging & discharging parameter
Settable working modes of loads
Accumulative function of charging & discharging
Protection for battery back discharging
Protection for battery low voltage
12V at 10.2v
24V at 20.4v
36v at 30.6v
48v at 40.8vO

Overloading& short-circuit protection

Battery reversed protection
Delayed auto restart after overloading protection
Model: 60A PWM Solar Charge Controller
Rated working voltage :12V/24V/36V/48V DC AUTO
Rated working current :60A
Voltage of solar panel 48V
Float charging voltage (settable) :13.8V/27.6V/41.1V/55.2V
Low voltage protection (settable) :10.2V/20.4V/30.6V/40.8V
Low voltage recovery (settable) :11.5V/23.0V/34.5/460V
No load loss : Temperature compensation :-4m
Working temperature: -30 ~70
Weight:900g
Charging mode:PWM Solar panel power: 720W/12V;1440W/24V/3750W/48V
Colour:;Black
