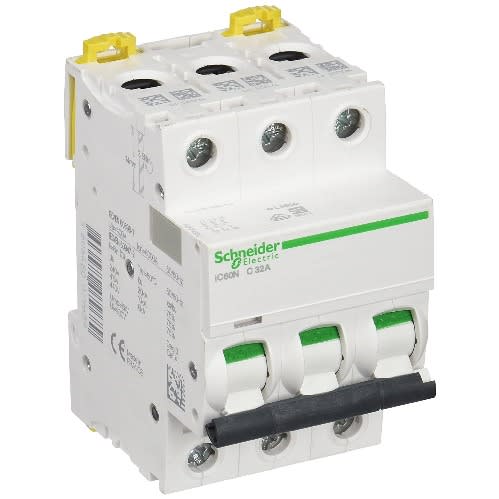

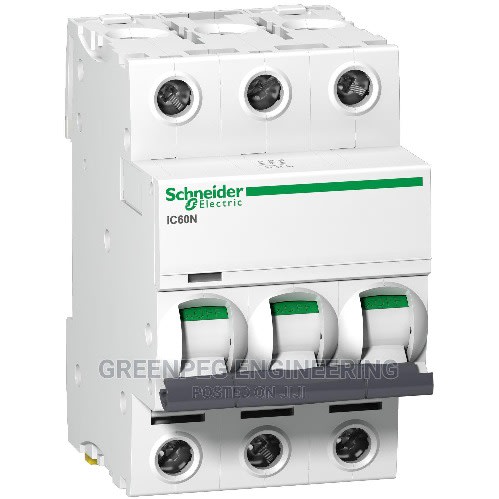

Acti9 iC60N 3P 16A C Miniature Circuit Breaker - A9F44316
˂
˃
Acti9 iC60N 3P 16A C Miniature Circuit Breaker - A9F44316
Price:
₦19,450
Share:
Product Description
| range | Acti 9 |
|---|---|
| product name | Disbo iC60 |
| product or component type | Miniature circuit-breaker |
| device short name | IC60N |
| poles description | 3P |
| number of protected poles | 3 |
| [In] rated current | 16 A |
| network type | AC |
| trip unit technology | Thermal-magnetic |
| curve code | C |
| breaking capacity | 6000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1 36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2 |
| utilisation category | Category A conforming to EN/IEC 60947-2 |
| network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 440 V AC 50/60 Hz |
| magnetic tripping limit | 8 x In +/- 20 % |
| [Ics] rated service breaking capacity | 27 kA 75 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 6000 A 100 % conforming to EN/IEC 60898-1 - 415 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V DC |
| limitation class | 3 conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| contact position indicator | Yes |
| control type | Toggle |
| local signalling | Trip indicator |
| mounting mode | Clip-on |
| mounting support | Rail |
| 9 mm pitches | 6 |
| height | 85 mm |
| width | 54 mm |
| depth | 78.5 mm |
| net weight | 0.375 kg |
| colour | White |
| mechanical durability | 20000 cycles |
| electrical durability | 10000 cycles |
| provision for padlocking | Padlockable |
| connections - terminals | Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible |
| wire stripping length | 14 mm for top or bottom connection |
| tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Separate block |
