Display Port To HDMI Cable

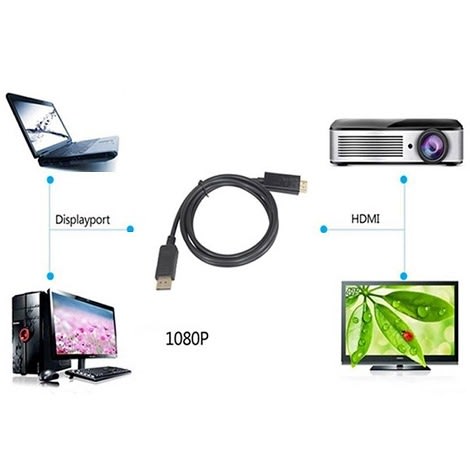

This product DisplayPort to HDMI video cable is suitable for the video card is Displayport interface device and the HDMI interface of the TV, monitors, projectors and other display devices, video and audio synchronization transmission. Product internal circuit design can only achieve one-way DisplayPort to HDMI conversion .DP then output devices such as PC, notebook, HDMI input devices such as monitors, TVs, etc..

Features.

Support DisplayPort v1.1, HDMI V1.3b;

Support DisplayPort signal to HDMI signal conversion;

Support 20 pin DisplayPort interface;

Support 8 and 10 color depth;

Support for video bandwidth up to 10.8Gbps;

Support 1Mbps' two-way auxiliary channel;

Support one-way, single-channel, four-wire connection;

Support HD Audio conversion;

Support 1080P 15 meters long-distance transmission;

Support hot swap;

Built-in conversion chip, no external power supply;

In strict accordance with the DisplayPort standard design, the port lock design, signal transmission is stable and reliable.

Specifications:

Colour: Black

Length: 6ft .180cm

Signal input / output:

Input Video Signal 5 Volt Probability Time (TTL)

The largest single link 1920x1080p range

Output video HDMI1.3b

Input OR Output Connector:

Enter: DisplayPort male 20pin

Output: A male HDMI 19pin

working frequency:

Vertical frequency range 50 / 60Hz

Video Amplifier Bandwidth 2.25Gbps / 225MHz

Resolution HDTV

Interlaced 50 & 60 480i, 576i, 1080i

Progress 50 & 60 480p, 576p, 720p resolution, 1080
