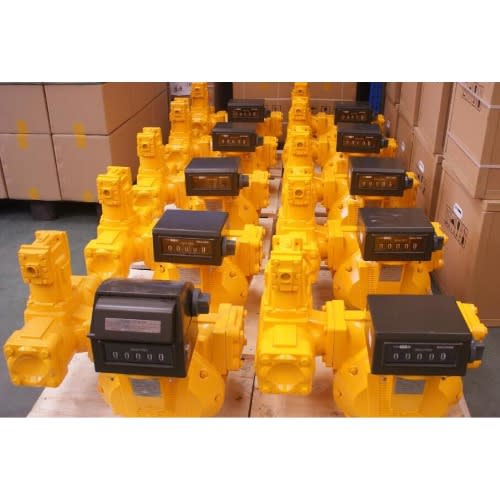

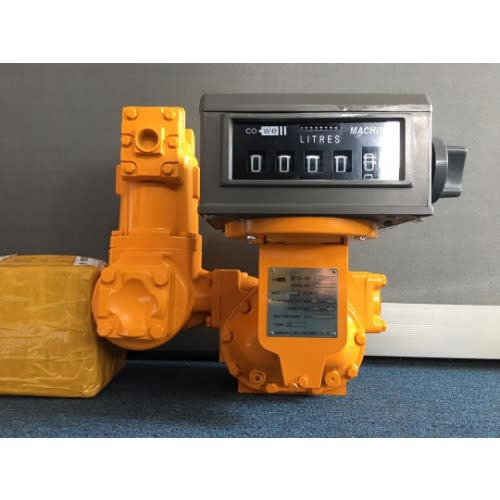

Fuel & Oil Flow Meter

High efficiency, simple structure, easy to use and maintain.

Excellent stepless fine-tuning device allows plus-minus calibration of flowmeter;High accuracy and repeatability within the large range of flow; Superior accuracy of constant flow;Low maintenance, low

wear, long working life;Low pressure loss, genuine gravity flowmeter;Accuracy regardless of pressure fluctuations, temperature variation, viscosity;Aluminum, cast iron and stainless steel materials of

construction for choice.Model TCS-40-1 TCS-50-1 TCS-50H-1 TCS-80-1 TCS-80H-1 TCS-100-1 TCS-100H-1 TCS-150-1 TCS-150H-1Size 40mm/1.5'' 50mm/2'' 80mm/3'' 100mm/4'' 150mm/6'' or

100mm/4''Flow Range(L/min) 25-250 38-380 55-550 75-750 115-1150 130-1300 170-1700 225-2250 300-3000Volume Per Revolutior 0.309L 0.681L 1.839L 5.102L 9.507LMax Pressure

108Bar/150PSIAccuracy ±0.2%Repeatability ≤0.5%Unit Liter/US Gallon/IMP Gallon
