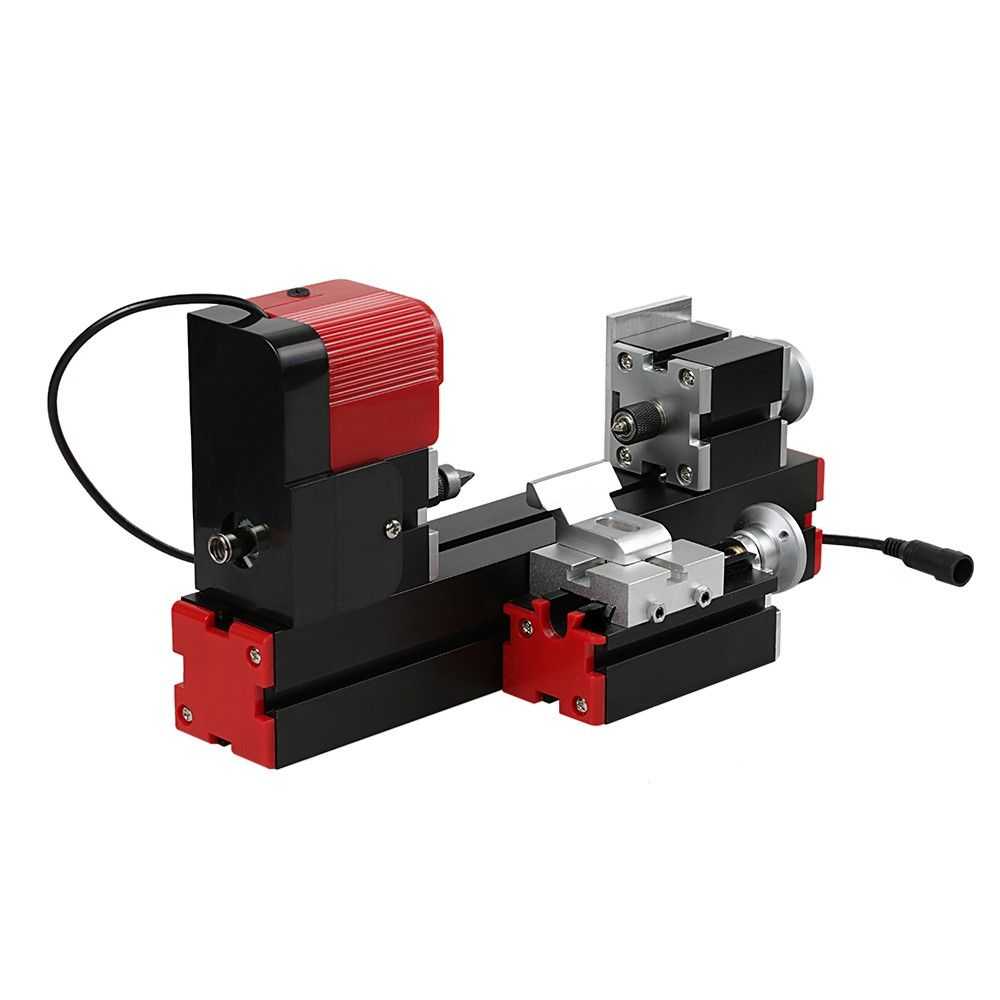

Mini DIY 6 In 1 Multipurpose Machine Multi-functional

Want to make molds or samples, create products and DIY process soft metals? Being curious about making handmade articles or crafts? Try this! Professional 6 in 1 motorized jigsaw, grinder, driller, miller, metal lathe, wood lathe. It\\\'s perfect for processing plastic, models, soft metal, pure copper, pure aluminum and wood.

Features:

Mini 6 in 1 lathe machine for DIY assembly of sawing machine, grinder, driller, wood lathe, metal lathe, miller.

Great handcraft tool kit for DIY, hobby, model making, crafts, students, small parts processing, etc.

Made of advanced aluminum alloy and zinc alloy, durable and non-deformable for usage.

Very interesting to install and use, perfect gift for lathe DIY enthusiasts.

This mini multipurpose machine can be assembled into 6 kinds of different lathes, but you can use only one kind of these lathes at the same time.

Specifications:

Plug Type: EU Plug

Material: Aluminum Alloy + Zinc Alloy

Color: Black + Red

Motor Speed: 20000rpm

Voltage: AC 100-240V 50/60Hz

Output: DC 12V 4A

Power: 48W

Can Assemble Machine: Jigsaw, Grinder, Driller, Wood Lathe, Metal Lathe, Miller

6-in-1 Functions: Drilling, Sanding, Turning Lathe, Milling, Sawing, Wood Turning Lathe

Can Process Objects: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.) Acrylic, PCB, etc.

Package Size: 47.5 * 36 * 10cm / 18.70 * 14.17 * 3.94in

Package Weight: 4.5kg / 9.92 lb

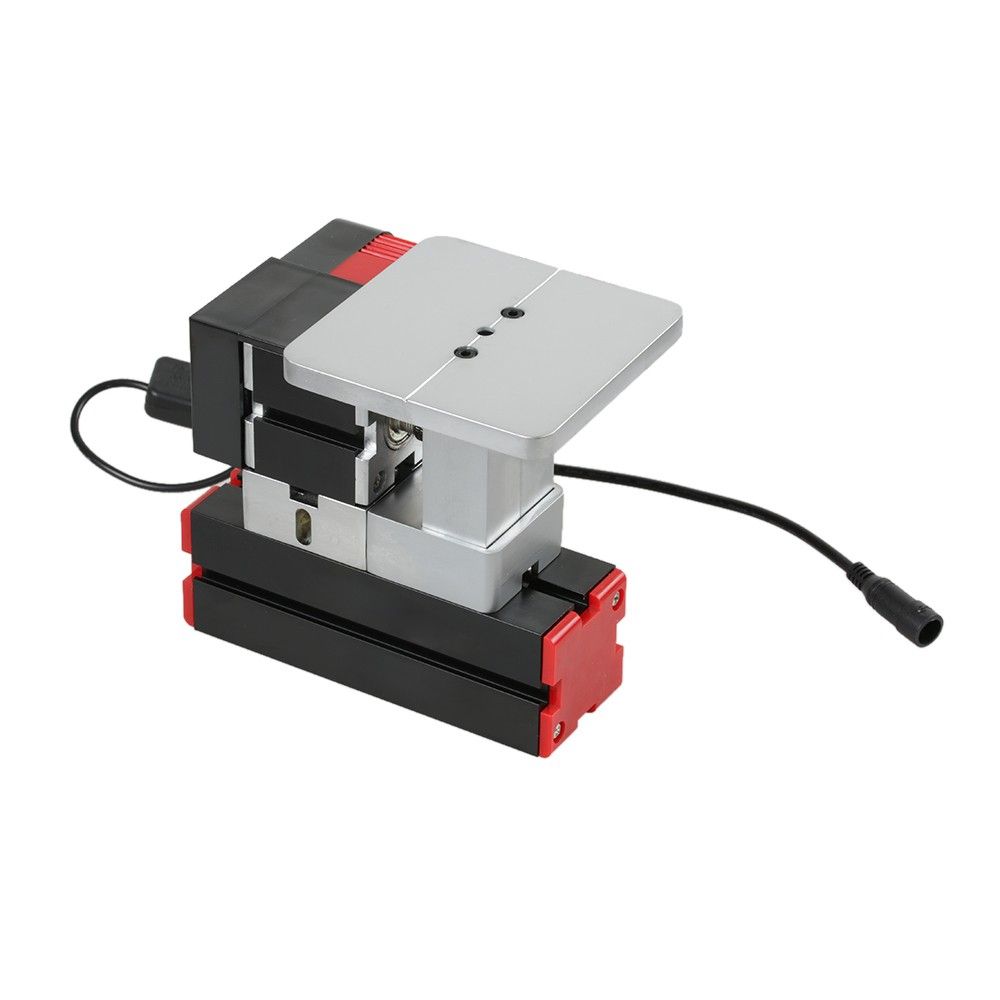

Technique Data of Jigsaw:

Operating Space: 100 * 100mm / 3.94 * 3.94in

Maximum Cutting Saw Depth: 4mm Hardwood, 7mm Triply Wood, 18mm Softwood, 0.5mm Aluminium Flakes, 2mm Organic Glass

Jigsaw Weight: 2.4kg / 5.29 lb

Jigsaw Size: 150 * 100 * 140mm / 5.91 * 3.94 * 5.51in

Technique Data of Grinder:

Operating Space: 120 * 100mm / 4.72 * 3.94in

Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)

Grinder Weight: 1.5kg / 3.31 lb

Grinder Size: 290 * 100 * 100mm / 11.42 * 3.94 * 3.94in

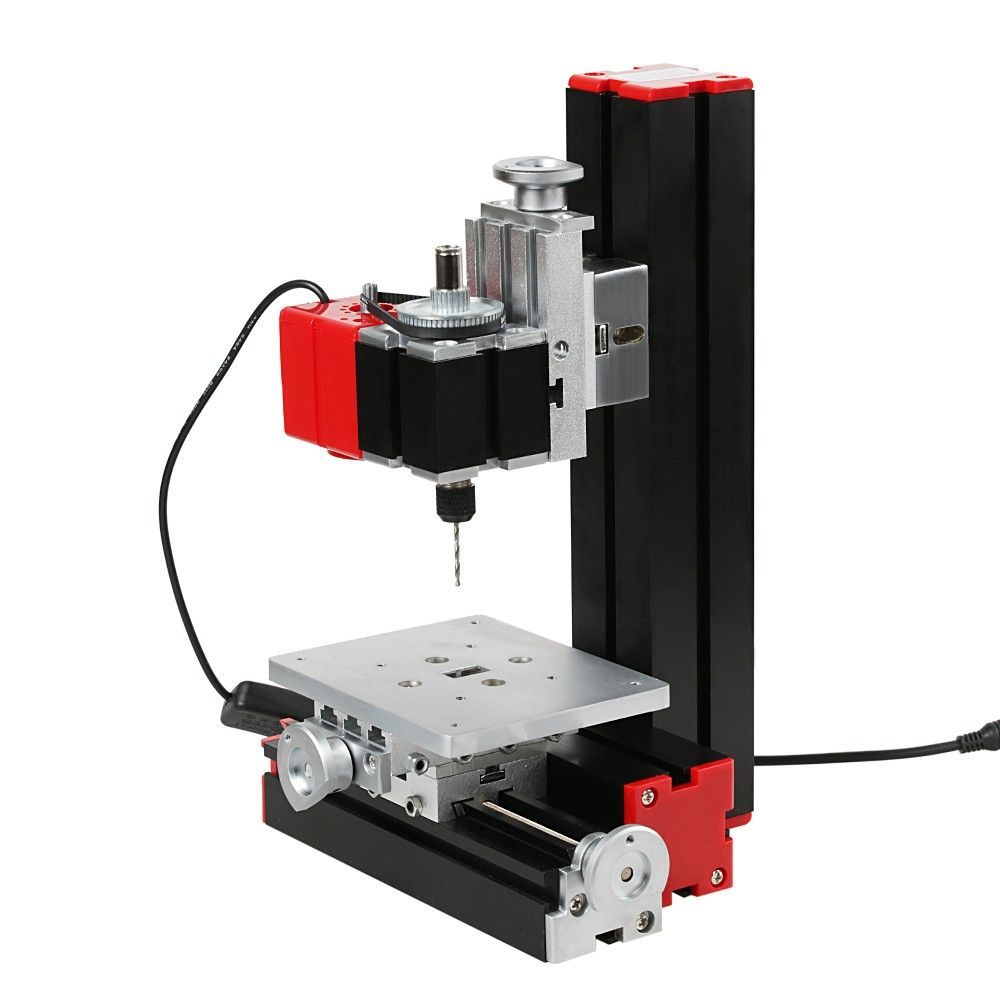

Technique Data of Driller:

Operating Space: 120 * 100mm / 4.72 * 3.94in

Slide Stroke: 30-50mm

Collets Size: 1-6mm

Clamping Size of Vice Clamp: 0-35mm

Driller Weight: 2.8kg / 6.17 lb

Driller Size: 160 * 290 * 150mm / 6.30 * 11.42 * 5.91in

Technique Data of Wood Lathe:

Maximum Processing Diameter: 50mm

Processing Length: 135mm

Grinding Materials: Wood, Plastics

Wood Lathe Weight: 2.0kg / 4.41 lb

Wood Lathe Size: 290 * 150 * 130mm / 11.42 * 5.91 * 5.12in

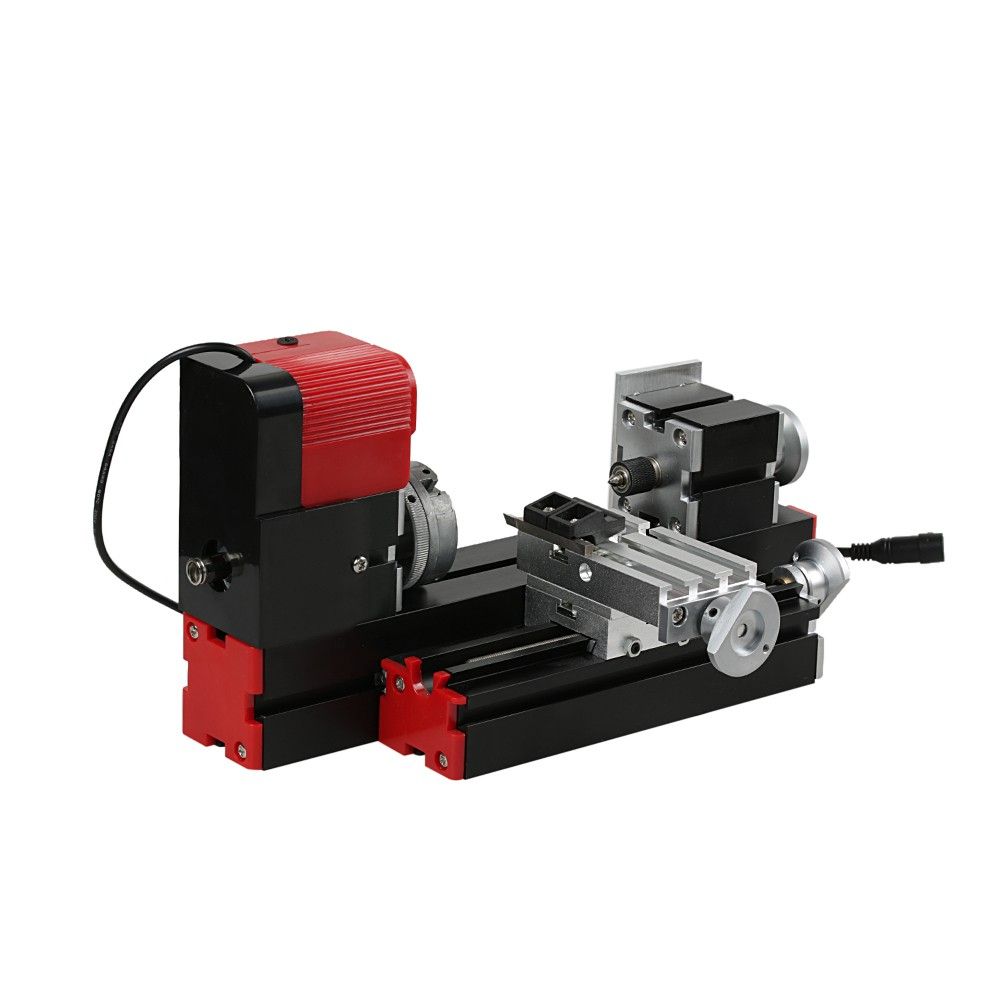

Technique Data of Metal Lathe:

Lengthened Large Slide Block Stroke: 140mm

Maximum Processing Diameter: 50mm

Processing Length: 135mm

Grinding Materials: Soft Metal(Gold, Silver, Copper, Aluminium, etc.)

Metal Lathe Weight: 2.5kg / 5.51 lb

Metal Lathe Size: 290 * 90 * 220mm / 11.42 * 3.54 * 8.66in

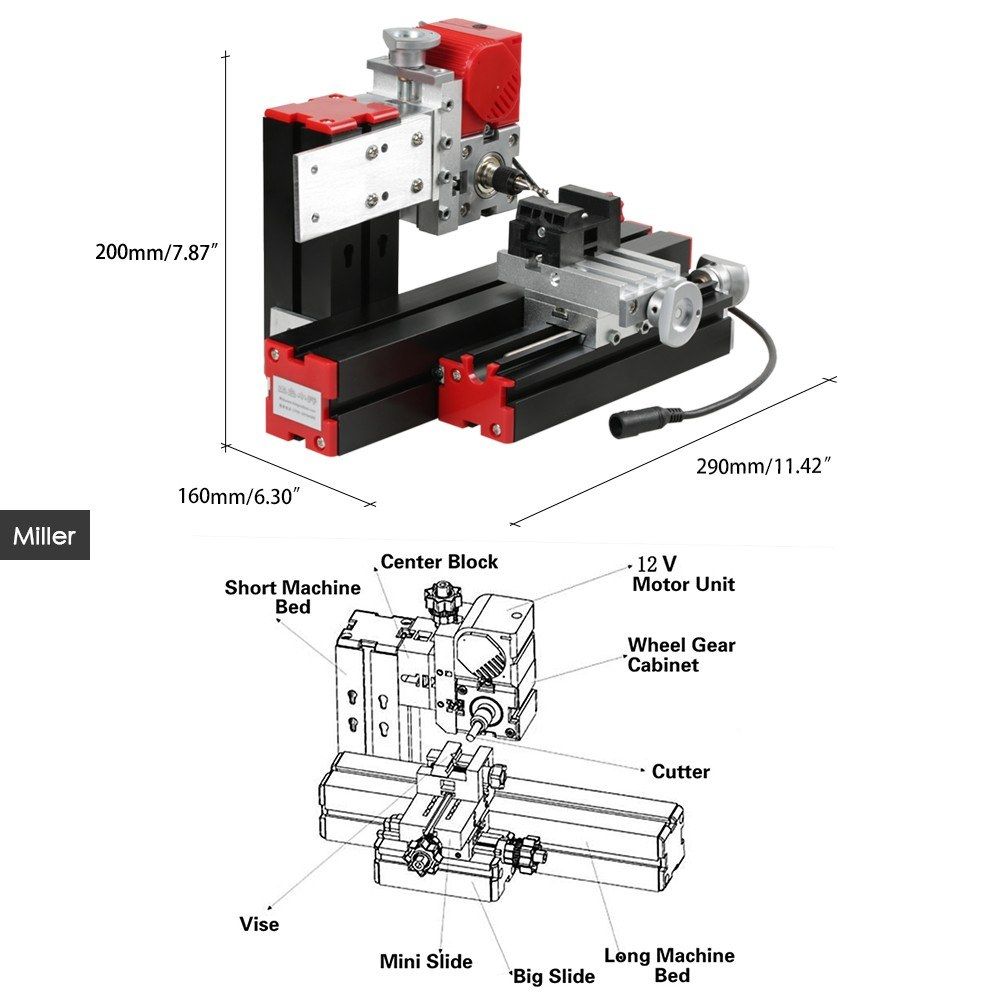

Technique Data of Miller:

Slide Stroke: 30-50mm

Collets Size: 1-6mm

Clamping Size of Vice Clamp: 1-35mm

Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)

Metal Lathe Weight: 2.8kg / 6.17 lb

Metal Lathe Size: 290 * 160 * 200mm / 11.42 * 6.30 * 7.87in

Package List:

1 * Long Machine Bed

1 * Wood Board

1 * 3-Jaw Chuck

1 * Abrasive Disc

1 * Working Accessories

1 * Driller Rocker Arm

2 * Small Slider

1 * Big Belt Cover Block

1 * Grinder Protection Cover

2 * Right-angle Fixed Plate

1 * Power Transformer

1 * Plain Vice

1 * Big Slider

1 * Motor

1 * Counter Shaft

1 * Tail Stock

1 * Short Machine Bed

8 * Copper 1-6mm Collets

3 * Bracket

1 * Sawing Machine Base + Bracket
