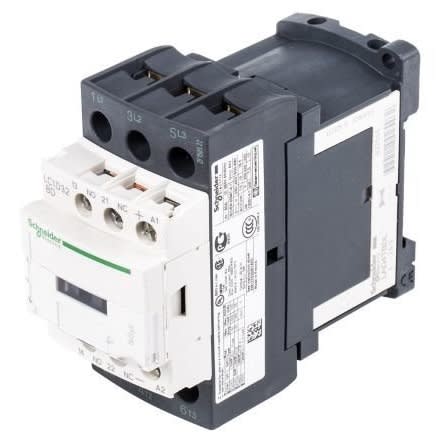

32A Contactor with NC/No Buttons and Ac 220v LED Indicator Lamp

Schneider Electric is a European multinational company providing energy and automation digital solutions for efficiency and sustainability.

Features:
1. 100%new and high quality.

2. This product is an industrial electric appliance that uses a coil to flow through the current to generate a magnetic field that closes the contact to achieve the control load of the electrical installation

3. The contactor is sensitive and has a greater carrying capacity.

4. Stable connection contact is of strong conductivity.

5. Usually used in power, distribution and power applications.

Specification:

Current: 32A

Coil Voltage: AC 220V

Ui: 690V

Uimp: 6kV

V/KW : (200-220)/2.2-3.7

max HP: 6HP

Torque: 20ib

Max. short circuit rms ratings: 5kv, 600v. with high response circuit breaker

Operating Frequency: 1200 times/hour

Wiring Mode: Plate Front Wiring

Installation Method: Fixed Type, Rail Type

Weight: Approx. 551g / 19.4oz

Buttons Features:

• Product Name: Push Button Switch;
• Action Type: Latching
• Model : XB2BA42 X1 and XB2BA32 X1
• Contact Type: ON (NO) + OFF (NC)
• Poles: SPST
• Max voltage : 660V
• Current : 10A
• Quantity: 1 OFF buttons + 1 ON buttons
• Terminal : 2 Pins

Color: As Picture Shown;

Package Content: 1 x ON Push Buttons Switch and 1 OFF Push Buttons Switch

* Features: 2 terminals, 22mm mounting hole, 1NO with 1NC contact type,

* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

LED indicator pilot is a light source device that emits light when current flows through it. LEDs are commonly green, amber, or red, but they can be an assortment of other colors as they've become popular with case lighting

PRODUCT DESCRIPTION

• Product Name : LED Indicator Pilot Light
• Model No. AD22-22DS
• Voltage : 220V AC
• Current: 20mA(Max.)
• Screw Terminal Number : 2
• Material : Plastic,
• Electric Components: paulgrand electric
• Light Color : Yellow, Blue, Red
• Mount Hole Diameter : 22mm/ 0.87";Size : 29 x 51mm/ 1.1" x 2"(D*H)
• Weight : 0.23kg
• Package Content : 9 x LED Indicator Pilot Lights

Package List:

1 * AC Contactor with NC/NO Buttons and indicator lamp
