0.96inch I2C IIC Serial 128x64 Blue OLED LCD LED Display

I am an Chinese seller,providing customers with high-quality and low-cost products.

The types of products we sell include Home & Kitchen,Health & Beauty,Fashion Clothing,Electronics,Watches & Jewelry,and so on.

We keep up with the most popular fashion trends. If you like our products, please follow us and become our followers and fans.

Sincerely at your service .Please feel free to contact us if you have any questions.
Specifications:
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 series, MSP430 series, STM32/2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08w.
Super high brightness and contrast are adjustable.
With embedded driver/controller.

Item Name: LED Display Module for Arduino
Interface Type: IIC

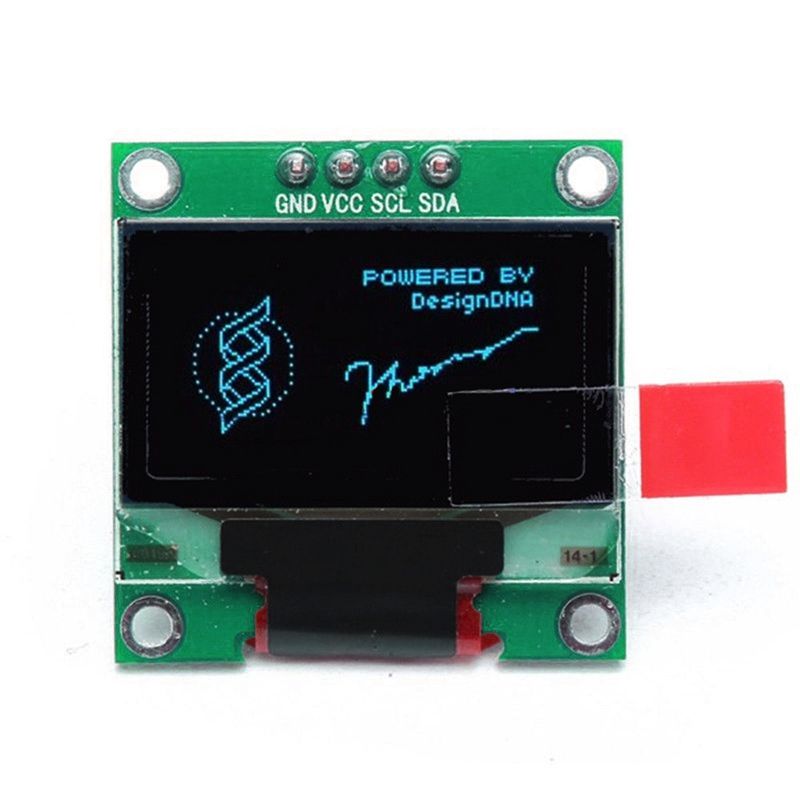

Pin Definition: GND, VCC, SCL, SDA
Pins: 4 Pins
Voltage: 3V ~ 5V DC
Working Temperature: -30℃ ~ 70℃
Character Colors: Blue(As Pictures Shows)
Drive Duty: 1/64 Duty
High Resolution: 128*64
Driver IC: SSD1306
Panel Dimensions: 26.70mm x 19.26mm x 1.85mm/1.05" x 0.76" x 0.07" (Approx.)
Active Area: 21.74mm x 11.2mm/0.86" x 0.44" (Approx.)

Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

Package Included:
1 x LED Display Module for Arduino

Key Features

128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 series, MSP430 series, STM32/2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08w.
Super high brightness and contrast are adjustable.
With embedded driver/controller.

What's In the Box

1 x LED Display Module for Arduino
