Ahd Spy Camera

AHD Spy Camera

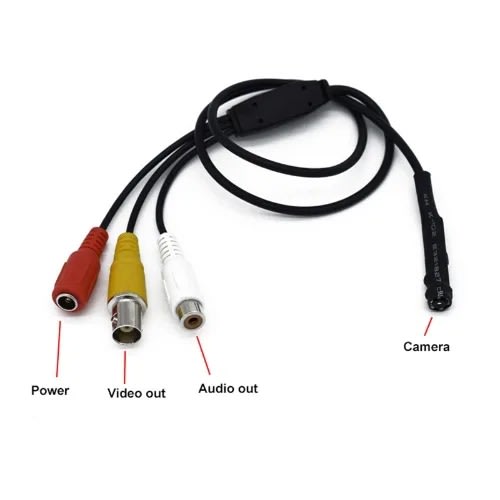

1200TVL Tiny Mini CCTV 1.3MP AHD Spy Camera IR Hidden Video Nanny Small Camera

(Notice:This Models is AHD Camera 1.3MP ,need work with AHD dvr ,not support directly connect with TV or monitor )
Why AHD(Analog High Definition)?

1.Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable.

2.HD video transmission without video quality loss & delay

3.Extremely long transmission distance(500m)

4.The same connection structure as original analogue system without cable (Coax / UTP) changing

5.High video quality on AHD 1080P/720P

AHD is short for Analog High Definition

Coaxial transmission, super long range, more than 500 meters by 75-3(HD-SDI can only reach less than 100 meters)

Advantages of Our HD AHD camera(Solution: 1/3" IMX322+NVP2441H)

1. Good compatibility

Support AHD output and CVBS output, can work with 1080P AHD DVR (Real 1080P output) and 960H DVR(can ONLY reach 960H resolution)

2. Convenience

Transmission via Coaxial cable, no need to change wires if changed from Analog cameras

3. Clear vision but Good prices

1080P, resolutoin up to 1920(H) x 1080(V), more than 2000TVL

Prices lower than HD-SDI and CVI

HD means analog high definition, AHD’s birth, would be to solve the transmission distance limitations of existing HD-SDI solution. AHD supports video transmission over traditional 75-3 coaxial cable around 500 meters, also it becomes another alternative for HD analog solution. By the real way, it inherits and carries forward benefits of traditional analog solution, video signal are uncompressed, keep all of the original video details, to seriously achieve high definition uncompressed lossless, no video effect latency.Much like other HD analog solutions, through utilizing the progressive scan CMOS image sensor, the AHD camera can deliver 1.0 megapixel, 1.3 megapixel, 2 megapixel resolution, added with ICR filter, the camera achieve true day/night video surveillance; and same just like the traditional analog system, AHD products support plug-and-play installation, simple to use.
Technical Specifications
*1.3 MP AHD Pinhole CCTV Camera

*3.6MM Len

*6 Pcs Led Lights

*IR Night Visiondrive

Sensitive components 1/4"HD seneor
Resolution 1280*960
Pixel 500W
Horizontal resolution 600TCV
Color Color to black(daylight color,infrared boot is black
Bottom illumination 0.05lux
SNR ≥48db(automatic gain switching)
Gamma 0.45
Refresh rate 60f/s NTSC 50f/s PAL
Electronic shutter PAL;1/50s-1/10000s;NTSC:1/60S-1/100000s
Temp jobs -20-60degree
Power specfications DC5.5V-12V,80mA±10mA
White Balance Automatic
Audio Ouput Mono
Video Output 1.0P-P75Ω(BNC)
Synchronization System Internal Synchronization
Signal System Pal/NTSC
Shot standard:Button/Screw/Board
