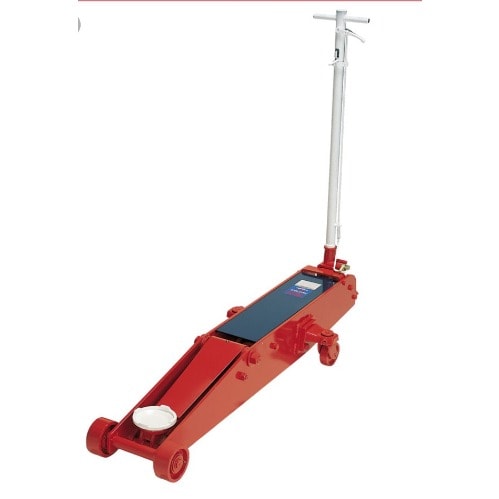

Hydraulic Floor Jack -10ton
Hydraulic Floor Jack -10ton
Constructed of rugged steel
All metal casters
Additional foot pedal pumping provides fast saddle raising to the load
Chromed ram provides protection and increased durability
Safety by-pass and overload systems protect hydraulic block
The long, low design enables the user to get into those very low work areas
Designed for heavy duty shop applications
3 Position Locking Handle
100% Serviceable
MEETS ANSI STANDARD FOR PERFORMANCE AND SAFETY
Specifications:
Weight Capacity: 10 Ton (20,000 lbs. )
Min. Saddle Height: 6-3/8" (160mm)
Max. Saddle Height: 22" (560mm)
Hydraulic Lift: 15-3/4" (400mm)
Chassis Length: 58-1/4" (1478mm)
Chassis Width: 19" (482mm)
Handle Length: 45-1/2" (1155mm)
Frame Height: 8-3/4" (224mm)
Saddle Diameter: 5-7/8" (150mm)
Net Weight: 320 lbs. (145kg)
