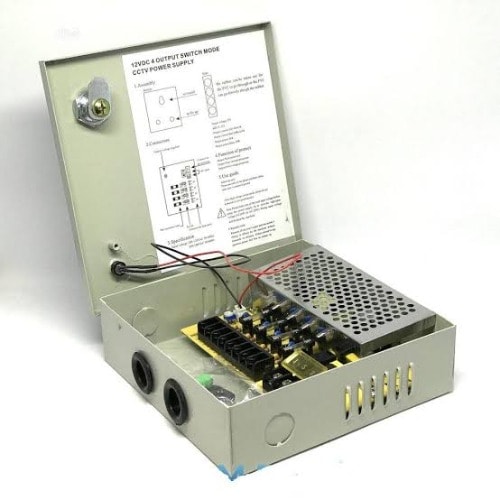

4 Way Cctv Power Supply Box

The 4CH 12v dc fused CCTV Power Supply Unit (CCTV Central Power) offers a more professional alternative to individual power adapters, for powering 4 CCTV cameras indoor and outdoor. Mounting flange design allows easy wall mounting.

Features:

General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.

Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.

High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.

Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

Application: CCTV Camera, PTZ, IR Illuminator, Video Processor, Access Control, etc.

Technical Specification:

Input Voltage ? AC 100-240V

Input Voltage Frequency ? 50/60Hz

Output Voltage ? DC 12V

Total Output Current ? 10A

Total Outputs ? 120W

Fuse Type ? Glass Fuse

Fuse Rating ? 0.5 Amps / 250VAC
